We Design. We Build. We Deliver.
Custom OEM Fractional Horsepower AC & Brushless EC Electric Motors, Centrifugal Fans, and Cross-Flow Blower Assemblies.
Altran Magnetics engineers, manufactures, and supplies heavy-duty fractional horsepower AC motors, electronically commutated (EC) brushless platforms, centrifugal blowers, and tangential fans tailored specifically to demanding original equipment applications.
With decades of electromechanical engineering expertise operating from our Sterling, Illinois facility, we support global procurement managers and OEM design teams through every phase of component qualification. From application-specific coil winding, custom shaft dimensions, and specialized thermal protection to 100% automated end-of-line electrical testing, Altran delivers certified reliability designed to maximize duty cycles and eliminate field downtime.
Full compliance with UL 1004, TUV, and CE safety standards for global export clearance.
Tailored stack sizes, custom lead lengths, specialized bearings, and custom mounting brackets.
Automated dielectric withstand, dynamic balance, and thermal limit verification per batch.
State-of-the-art electronically commutated technology to reduce heat and power consumption.
Explore our primary motor and blower platforms. Select any platform to request detailed engineering drawings, 3D CAD files, or custom quotation samples.

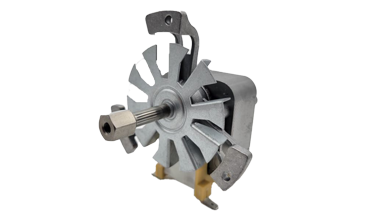

Compact, fractional horsepower AC motors built for high reliability in tight enclosure profiles. Available with optional integral gearbox drives.

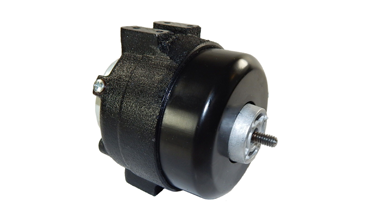

Cast iron or cast aluminum housing constructions featuring a sealed unit bearing cavity that eliminates metal-to-metal contact and extends operational lifespan.

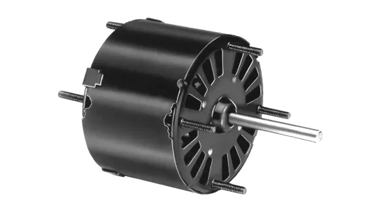

Engineered for continuous-duty air movement and fluid pump drives requiring high starting torque and quiet acoustic operation.

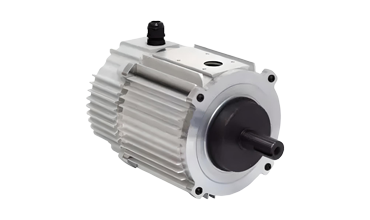

Advanced brushless electronically commutated design providing superior energy conservation, precise speed control, and significantly reduced operating temperatures.

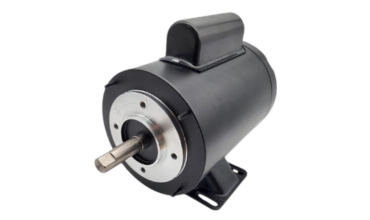

Heavy-duty industrial motors built in steel and aluminum shells. Available in TEFC, TE, ODP, or Air Over (AO) enclosure configurations.

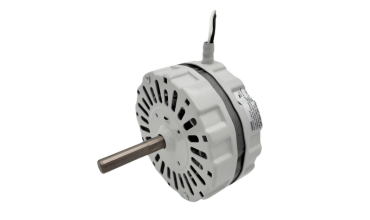

Versatile 5-inch motor platform configured for direct-drive fans, fluid pump drives, and multi-speed ventilation systems.

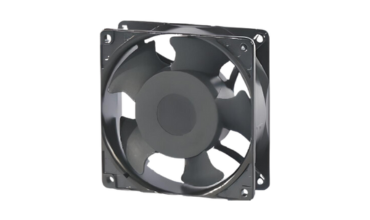

High-efficiency axial fan packages engineered for minimal installation depth and quiet thermal dissipation in electronic enclosures.

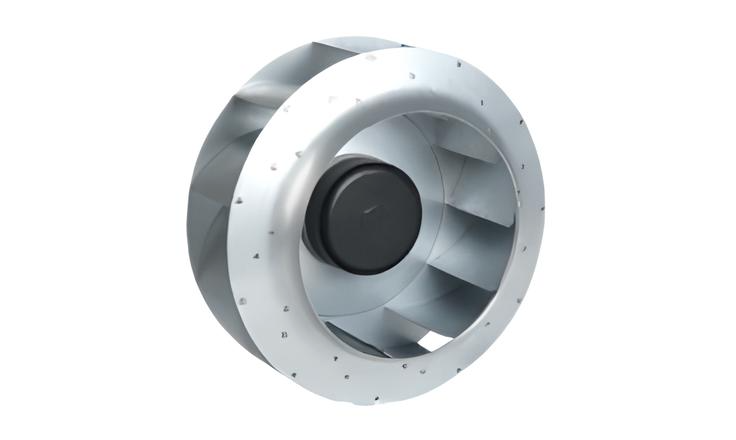

Designed for medium-to-high static pressure requirements. Air is drawn axially over the motor assembly and discharged radially without requiring a scroll housing.

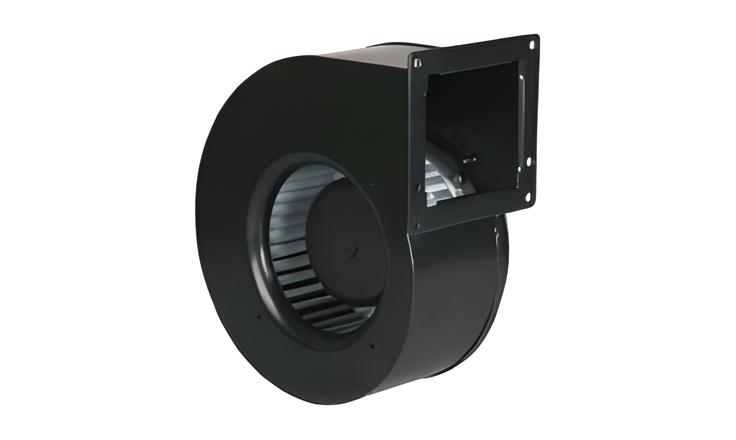

External rotor motor coupled with forward curved centrifugal impellers housed within heavy-duty scroll housings for high static pressure cooling.

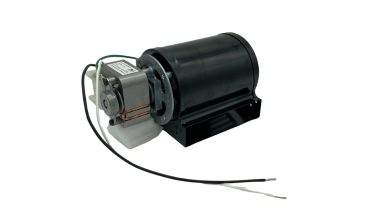

Versatile double-inlet and single-inlet centrifugal blowers providing constant air delivery (60-200 CFM) across low-to-medium resistance systems.

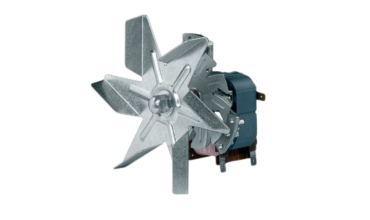

High-temperature fan units featuring an AC motor positioned outside the heat zone coupled with stainless steel or die-cast aluminum radial impellers.

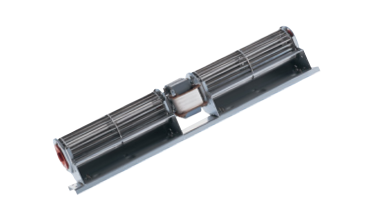

Delivers smooth, wide-stream, uniform laminar airflow over long distances. Features a space-saving rectangular profile with quiet operation.
Compare key operational metrics across our core motor and air moving product platforms:
| Platform Category | Operating Voltage | Power Output / Flow | Protection Type | Key Certifications |
|---|---|---|---|---|
| C-Frame AC Motors | 115 V – 240 VAC | 1 RPM – 3,000 RPM | Impedance / Thermal | cUL, TUV, CE |
| Unit Bearing Motors (AC/EC) | 115 V – 480 VAC | 7.5 W – 45 W | Thermal Overload | cUL, CE |
| 3.3" Shaded Pole / PSC | 115 V – 480 VAC | 5 W – 190 W | Auto Thermal Reset | cUL, TUV, CE |
| High Efficiency EC Motors | 115 V, 230 V, 277 VAC | 90 W – 750 W | Electronic Locked Rotor | cUL, TUV, CE |
| 42 / 48 / 56 Frame Motors | 115 V – 460 VAC (1/3-Phase) | 250 W – 7,500 W | Manual / Auto Thermal | cUL, CE |
| Tangential Cross-Flow Fans | 115 V – 240 VAC | 50 CFM – 250 CFM | Impedance Protected | cUL, CE, RoHS |
| Centrifugal Scroll Blowers | 115 V – 240 VAC | 24 CFM – 700 CFM | Thermal Cutoff | cUL, TUV, CE |
Direct engineering answers to technical questions commonly raised by international OEM buyers and procurement engineers.
Standard Altran Magnetics motor and blower product lines carry cUL (UL 1004 compliant file references), TUV, and CE recognized marks. Every production batch meets RoHS and REACH environmental guidelines. Compliance reports, material composition breakdowns, and certificate copies are provided alongside sample shipments.
Custom engineering is our core expertise. We regularly modify stator stack thickness, copper winding turns, shaft flat locations, dual shaft extensions, lead wire gauges, quick-connect terminals, and mounting brackets to align perfectly with your drawing specifications.
Altran electronically commutated (EC) motors increase overall electrical efficiency from ~20-30% up to 70% or higher. This significantly lowers electrical operating costs, reduces waste heat dumped into refrigerated spaces, enables variable-speed control (0-10V or PWM), and increases expected bearing service life.
All motor and motorized impeller assemblies undergo 100% automated end-of-line electrical testing (hi-pot, resistance, current draw) as well as dynamic balancing to minimize rotational vibration and operational acoustic noise prior to export packaging.
Consult directly with Altran application engineers. We evaluate your static pressure curves, mounting footprints, envelope dimensions, and thermal requirements to deliver prototype samples fast.
