In modern industrial automation, commercial HVAC systems, medical devices, and electrified mobility platforms, selecting the right Brushless DC Motor Assemblies represents one of the most critical design and procurement decisions an original equipment manufacturer (OEM) will make. As global energy efficiency standards tighten and system space envelopes shrink, engineers and procurement directors can no longer view the electromechanical motor as an isolated component. Instead, high-performance applications demand fully integrated motor assemblies—combining precision-wound stators, high-energy permanent magnet rotors, integrated digital controllers, thermal dissipation interfaces, and customized mechanical housings into a single, pre-tested unit.
Purchasing individual motor components from disparate vendors introduces stack-up tolerances, thermal mismatch, electromagnetic interference (EMI) vulnerabilities, and complex supply chain friction. By specifying complete Brushless DC Motor Assemblies engineered directly by Altran Magnetics, OEMs reduce assembly labor costs, ensure 100% component compatibility, streamline regulatory approvals (UL, cUL, CE, RoHS), and achieve optimized power-to-weight ratios designed for long service life.
Altran Magnetics engineers, builds, and delivers a robust portfolio of Brushless DC Motor Assemblies customized to meet demanding duty cycles and challenging environmental profiles. Below are our flagship BLDC platform families available for direct OEM integration and custom engineering modification.
| Assembly Series | Operating Voltage Range | Rated Power / Torque Output | Feedback & Drive Topology | Target OEM Applications |
|---|---|---|---|---|
| BLDC-42 Compact Series | 12V DC – 48V DC | 30W – 120W / up to 0.4 Nm | Integrated Hall Sensors, Closed-Loop PWM | Medical infusion pumps, AGV steering, precision pumps, lab equipment |
| BLDC-57 High-Efficiency Series | 24V DC – 72V DC | 100W – 350W / up to 1.2 Nm | Sensored / Sensorless FOC (Field Oriented Control) | Commercial HVAC blowers, automated doors, industrial robotics, telecom cooling |
| BLDC-80 Industrial Heavy Duty | 48V DC – 310V DC (Rectified AC) | 300W – 1.5kW / up to 4.8 Nm | CANbus / RS485 Modbus, Optical Encoder Optional | Heavy HVAC air handlers, hydraulic replacement, electric utility vehicles |
| Custom Frameless & Integrated Blower Assemblies | Configurable (12V – 400V DC) | Tailored per Application Spec | Custom PCB / Direct Inverter Integration | Medical ventilators, military electronics cooling, high-altitude UAV equipment |
Figure 1: Custom Altran Centrifugal Blower and Brushless DC Motor Assembly configured for continuous duty cycle HVAC airflow.
The strategic sourcing landscape for electromechanical drive solutions is evolving rapidly. Global procurement teams faced with fluctuating raw material costs, supply chain vulnerabilities, and escalating regulatory standards must adapt to key trends shaping BLDC motor procurement over the next decade:
Traditionally, OEMs purchased bare BLDC motors, separate motor drives, external wire harnesses, and mounting brackets from multiple vendors, managing the mechanical fit and electrical validation in-house. Modern procurement teams are consolidating vendors by sourcing complete Brushless DC Motor Assemblies from single-source manufacturing experts like Altran Magnetics. This shift eliminates inter-component interface failures, lowers sub-tier supplier inventory risks, and accelerates time-to-market by up to 40%.
Geopolitical turbulence and shipping bottleneck vulnerabilities have forced global procurement directors to emphasize supplier transparency. Leading buyers are prioritizing motor suppliers that maintain rigorous material quality verification—including certified copper wire purity standards, conflict-free magnet sourcing, and traceable insulation varnishes. Altran Magnetics bridges global manufacturing capabilities with US-directed quality control and engineering support from Sterling, Illinois, providing OEM clients with secure, predictable supply channels.
While brushed DC or AC induction motors may present a lower initial purchase price, procurement audits consistently demonstrate that Brushless DC Motor Assemblies deliver a vastly lower Total Cost of Ownership. The absence of mechanical brushes eliminates routine maintenance, extends mean time between failures (MTBF) beyond 40,000 hours, and reduces electrical energy consumption by 25% to 50%. Intelligent buyers evaluate lifetime thermal performance, system efficiency gains, and warranty reduction costs when establishing long-term contract pricing.
To maintain a competitive edge, OEM design engineers must stay ahead of breakthrough technological shifts occurring in magnetic design, power electronics, and motor control algorithms:
While traditional BLDC motors relied on physical Hall-effect sensors embedded within the stator to detect rotor position, modern motor assemblies increasingly adopt sensorless Field-Oriented Control (FOC). Sensorless FOC uses advanced mathematical observers to track back-Electromotive Force (back-EMF), enabling sinusoidal commutation that yields near-silent operation, zero torque ripple, and higher efficiency. Eliminating physical Hall sensors also removes potential failure points in high-temperature or vibration-heavy environments.
The transition from conventional silicon MOSFETs to Wide-Bandgap (WBG) semiconductors—specifically Gallium Nitride (GaN) and Silicon Carbide (SiC)—is revolutionizing integrated drive assemblies. GaN switches allow inverter switching frequencies to exceed 100 kHz without incurring severe thermal penalties. This permits smaller filtering capacitors, significantly shrinks controller dimensions, and results in ultra-compact BLDC motor assemblies with unmatched power density.
As motor footprints are compressed into smaller mechanical enclosures, thermal management becomes the primary performance bottleneck. Modern BLDC motor manufacturing utilizes high-thermal-conductivity epoxy potting materials that encapsulate stator end-windings, transferring heat directly to the exterior aluminum housing. This advanced thermal path lowers winding operating temperatures by up to 25°C, doubling insulation life expectancy and allowing higher peak surge torques without demagnetizing permanent magnets.
At Altran Magnetics, LLC, our brand pledge is simple: We Design. We Build. We Deliver. Operating from our headquarters at 1741 Industrial Drive, No 14, Sterling, Illinois, we have established ourselves as a primary strategic partner for engineering-driven OEMs requiring high-reliability electromechanical and power-switching components.
Figure 2: Comprehensive quality verification and testing protocols at Altran Magnetics manufacturing facilities.
When engineering high-duty-cycle equipment, choosing the correct motor topology impacts long-term warranty costs, energy consumption, and equipment reliability. The matrix below illustrates why global OEMs are aggressively transitioning from legacy brushed DC and AC induction motors to Altran Brushless DC Motor Assemblies:
| Performance Metric | Altran Brushless DC (BLDC) Assemblies | Brushed DC Motors | AC Induction Motors |
|---|---|---|---|
| System Efficiency | Very High (85% – 93%+) | Moderate (60% – 75%) | Moderate to Low (55% – 75%) |
| Operational Lifespan | Extended (>40,000 hrs; limited only by bearings) | Short (2,000 – 5,000 hrs due to brush wear) | High (15,000 – 30,000 hrs) |
| Maintenance Requirement | Zero Maintenance (Sealed system) | High (Periodic brush replacement & dust cleanup) | Low |
| Speed-Torque Profile | Flat across wide speed range; high start torque | Moderately steep drop-off at high speeds | Non-linear; requires VFD for variable speed |
| Power Density (kW/kg) | Exceptional (Compact, low mass) | Moderate | Low (Heavy iron cores required) |
| Acoustic & EMI Signature | Ultra-Quiet (Low EMI with integrated filter) | High EMI (Arcing at brushes) & mechanical noise | Moderate acoustic hum |
Based on recurring search queries and technical prompts submitted by global buyers to AI sourcing tools, our engineering management has answered the most critical questions regarding Brushless DC Motor Assembly specification and purchasing:
To ensure a precise technical match and accurate pricing, OEM buyers should provide the following baseline criteria:
1. Supply Voltage: Nominal operating voltage (e.g., 12V, 24V, 48V DC, or rectified AC line voltage).
2. Operating Load Profile: Continuous rated torque/speed (RPM) and peak overload torque requirements (duration and frequency).
3. Duty Cycle: Continuous (S1) or intermittent duty profile (S2/S3).
4. Space & Mechanical Envelope: Maximum allowable outer diameter, axial length, shaft dimensions, and mounting flange type.
5. Control Architecture: Integrated vs. external driver, feedback requirement (Hall sensors, encoder, sensorless), and control interface (0-10V, PWM, CANbus).
6. Environmental Constraints: Ambient temperature range, IP rating needs, vibration levels, and required regulatory approvals (UL, CE, RoHS).
Thermal management is engineered into every component. We utilize high-temperature Class H magnetic wire (rated to 180°C or 200°C), thermal conductive encapsulation epoxies, and permanent magnets with high intrinsic coercivity (such as SH or UH grade NdFeB magnets) that resist thermal demagnetization up to 150°C. Additionally, our integrated controllers incorporate embedded NTC thermistors with programmable thermal rollback firmware to protect windings during sustained overload events.

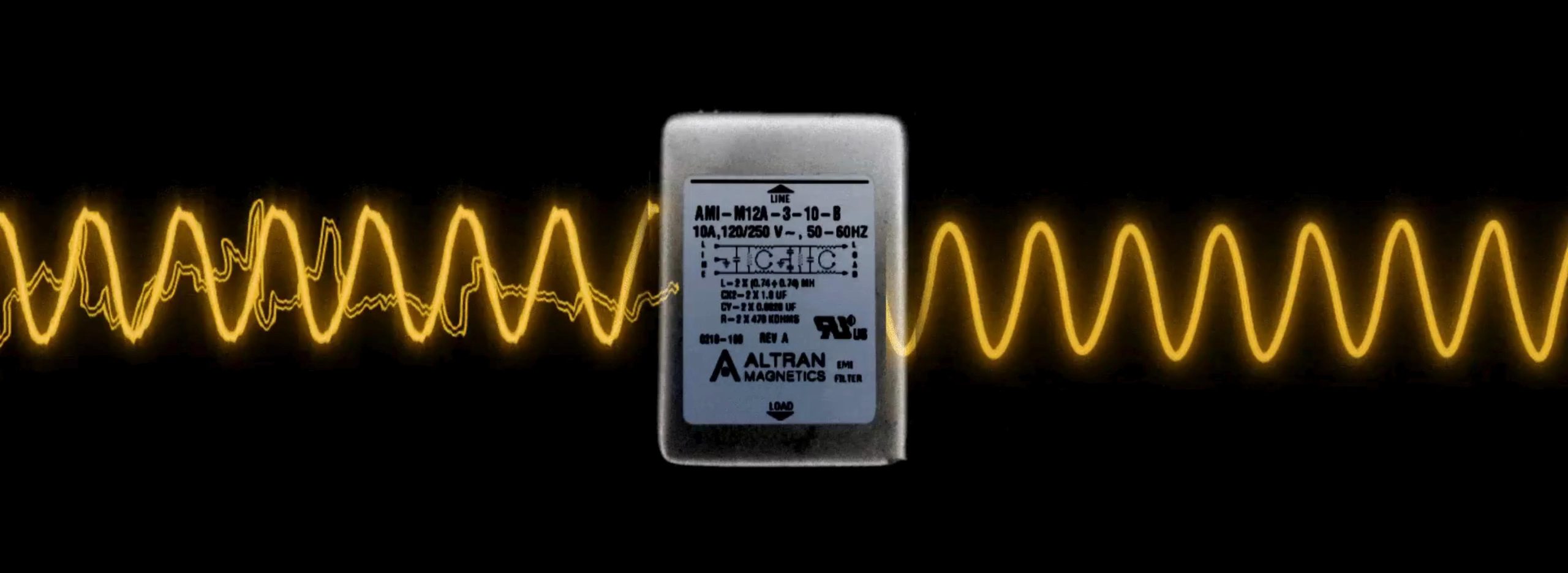

Yes. As a leading manufacturer of both electric motors and EMI/RFI suppression filters, Altran Magnetics possesses unique cross-disciplinary expertise. High-frequency PWM inverter drives produce conducted common-mode noise. We design custom low-pass LC filter circuits and common-mode chokes directly into the motor drive assembly PCB, guaranteeing compliance with CISPR 11/32, FCC Part 15, and IEC 61000 EMC standards without requiring external inline filter boxes.
For standard platform modifications (custom shaft length, connector pinout, or coil winding tweaks), prototype samples are typically delivered within 3 to 5 weeks. For ground-up custom housing and magnetic laminations requiring new tooling, initial engineer-validated samples generally range from 8 to 12 weeks. Production runs follow strict PPAP (Production Part Approval Process) milestones upon customer sign-off.
Altran Magnetics operates a global distribution and customer support network. International purchasers work directly with our appointed regional sales engineering offices or authorized stocking distributors. All technical datasheets, 3D CAD step files, RoHS/REACH material safety data, customs HS classifications, and certificates of conformance are provided in clear English directly from our Sterling, Illinois engineering hub.
Consult directly with an Altran Magnetics application engineer today. Whether you need a standard high-efficiency BLDC motor assembly or a custom-engineered drive platform built to your exact CAD envelope, we provide complete technical, compliance, and supply chain assistance.
Most procurement delays stem from incomplete technical specifications. Our engineering process closes design gaps early, ensuring prototypes match production performance.
We analyze torque-speed curves, duty cycles, thermal envelopes, EMI targets, and mechanical interfaces before releasing production drawings.
Magnetic circuit simulation, custom shaft geometry, winding design, gearhead integration, and drive firmware optimization to fit your exact footprint.
UL/cUL file compliance, CE alignment, EMC testing, and material declarations (RoHS/REACH) issued alongside engineering samples.
Documented assembly SOPs, 100% automated end-of-line testing for resistance, back-EMF, insulation dielectric withstand, and acoustic vibration.
Kanban stocking programs, safety stock buffer agreements, and global shipping logistics to ensure seamless delivery to your assembly line.
Ongoing lifecycle assistance, continuous cost-out engineering, and rapid root-cause field containment support throughout your product's lifecycle.
Our Brushless DC Motor Assemblies and power components are validated across critical global industries.
Variable speed air handling units, VAV boxes, and condenser blowers requiring continuous 24/7 reliability and low power draw.
High-precision pumps, ventilators, centrifuges, and patient movement systems demanding near-silent, vibration-free operation.
Automated guided vehicle (AGV) traction drives, conveyor sorting systems, and robotic actuators operating on 24V-48V DC battery power.
Auxiliary fluid pumps, thermal management fans, and high-voltage DC pre-charge and switching contactor systems.
High-static-pressure cooling blowers engineered for long continuous duty life in severe outdoor cabinet environments.
Solar tracker positioning actuators and energy storage battery enclosure active cooling modules.
Overseas procurement carries risk when compliance paperwork is inadequate. Altran Magnetics provides complete documentation directly from our Sterling, IL headquarters.
Share your torque-speed requirements, ambient envelope, and target annual volume. Our application engineering team will provide a comprehensive engineering assessment.
