Engineered for high current capability, ultra-low standby energy consumption, and long mechanical endurance in harsh industrial environments.
In modern electrical infrastructure across Canada—from Ontario’s utility-scale Battery Energy Storage Systems (BESS) to sub-zero mining operations in Northern Quebec and remote telecommunications cells in Alberta—electrical design engineers face a critical imperative: maximizing energy efficiency while ensuring unyielding circuit stability. Standard monostable electromechanical relays demand continuous current to keep contacts engaged, introducing perpetual thermal dissipation, high power draw, and increased failure risk during utility outages.
Magnetic Latching Relays (bistable switching contactors) solve this fundamental bottleneck. By utilizing permanent magnet excitation combined with pulse-driven electromagnetic coils, bistable latching relays lock into open or closed states mechanically. They consume zero power during continuous operation, operating purely on a transient pulse (15ms to 50ms). This architecture eliminates continuous coil heat, drastically improves mean time between failures (MTBF), and provides immunity to system voltage sags.
Because permanent magnets hold the armature in place, coil current is consumed only during state transitions. This reduces control panel standby power draw by up to 99.4%, cutting parasitic losses in clean energy systems.
Engineered with silver-tin oxide (AgSnO2) alloy contacts and hermetically sealed gas chambers. Validated to execute reliable switching at extreme ambient temperatures down to -40°C without mechanical freeze-up.
Built under ISO 9001 quality management standards and tested against stringent Canadian electrical standards. Offers high dielectric breakdown strength and high short-circuit withstand capabilities (SCCR).
Sourcing latching relays within Canada requires an acute understanding of regional grid compliance, environmental extremes, and market-specific industrial standards. Below are the primary sectors across Canada leveraging our bistable switching platforms:

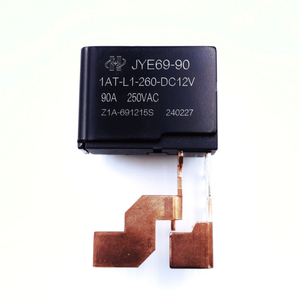

Utilities like Hydro-Québec and Ontario hydro providers mandate energy meters equipped with remote disconnect latching relays rated for 90A to 120A continuous duty. Relays like the E69 90A/100A Smart Meter Latching Relay feature short-pulse operation, ensuring smart meters maintain structural integrity even when exposed to severe grid lightning surges and short circuits up to 3,000A.

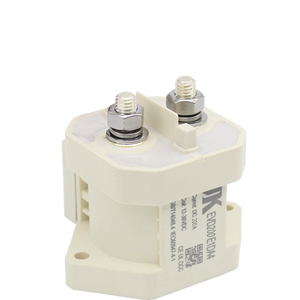

As Canada expands EV charging corridors along Trans-Canada Highway routes and installs large-scale solar/wind microgrids in British Columbia and Nova Scotia, high-voltage DC latching contactors (200A to 500A up to 1,500VDC) serve as critical main disconnect switches. By eliminating continuous coil energization, thermal management overhead inside sealed outdoor NEMA 4X power cabinets is significantly reduced.

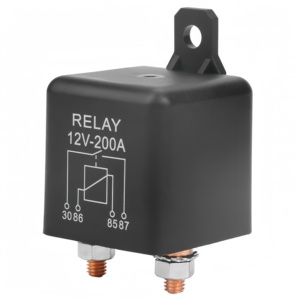

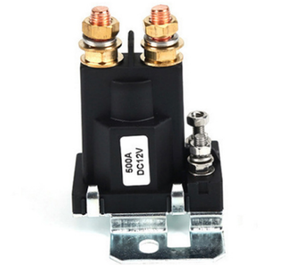

Heavy vehicle electrification in Northern Ontario and Northwest Territories subterranean mines demands battery isolation relays capable of enduring severe shock, vibration, and sub-zero cold starts. Heavy-duty 200A to 500A bistable isolators (WM686 & High Current Auto Contactors) prevent parasitic battery drain during extended winter shutdowns while providing instant high-current engagement upon ignition.

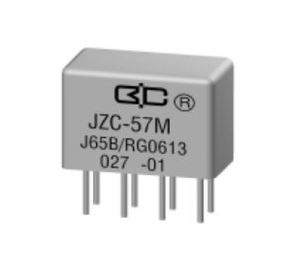

Off-grid telecom infrastructure relying on diesel-solar hybrid generation requires ultralow-power signal switching. DPDT miniature magnetic latching relays (TX2-L2-3V and JMC-11M) allow power management circuits to switch backup battery banks without consuming precious watt-hours during standby periods.
Comparing Standard Monostable Relays against Advanced Magnetic Latching Switch Architecture
| Performance Parameter | Standard Monostable Relay | Magnetic Bistable Latching Relay | Canadian Industrial OEM Advantage |
|---|---|---|---|
| Coil Energization | Continuous power required while ON | Pulse driven (15ms - 50ms pulse only) | Saves up to 99% in control power budget |
| Heat Dissipation | High constant coil temperature (+30°C to +60°C rise) | Near zero heat generation | Prevents thermal buildup inside NEMA enclosures |
| Power Outage Behavior | Drops out (resets to default state) | Maintains last contact position securely | Critical for remote telemetries & hydro meters |
| Contact Material | Standard Silver Nickel / Copper | Heavy AgSnO2 / AgCdO Alloy anti-weld | Prevents contact welding under high DC inrush |
| Operating Ambient Temp | -20°C to +60°C | -40°C to +85°C Extreme Resilience | Fully functional in harsh Canadian winter climates |
| Vibration Withstand | Moderate (susceptible to contact bounce) | High (magnetic force holds armature tight) | Ideal for heavy mining, rail & commercial transport |
The Canadian electrical component supply landscape is shifting rapidly due to accelerated net-zero carbon mandates, industrial electrification, and federal grid modernization grants. Buyers and OEM procurement officers are actively transitioning away from legacy European and Asian vendors in favor of regional suppliers capable of guaranteeing fast engineering support, low MOQs, and rigorous supply chain security.
Partnering with Altran Magnetics brings distinct operational advantages to Canadian businesses. With our North American headquarters in Sterling, Illinois, direct factory technical support is aligned with Canadian business hours (EST/CST). Canadian engineering teams receive direct access to application specialists for immediate custom coil designs, custom terminal wiring harnesses, dual-coil vs single-coil timing modifications, and complete CSA/UL safety certification verification paperwork.
From specific coil pulse voltages (3V to 110VDC) to custom busbar shapes, auxiliary contact integration, and custom connector potting, our engineers build tailored solutions for your BOM.
Every single latching relay lot undergoes strict automated testing for pick-up/drop-out voltage, pulse duration tolerance, contact resistance (<2mΩ), dielectric strength, and mechanical life cycles.
Duty-free cross-border customs handling under USMCA/CUSMA agreements, standardized English/French documentation, transparent lead times, and stocking distributor programs across Canadian provinces.
Common questions from Canadian electrical designers, hydro utility procurement managers, and system integrators.
A single-coil latching relay reverses its contact state by reversing the polarity of the applied DC voltage pulse across the single coil winding. A dual-coil latching relay has two separate coil terminals: energizing Coil A switches the relay ON, while energizing Coil B switches the relay OFF. Dual-coil designs simplify driver circuits in automated control systems because polarity flipping H-bridges are not required.
Standard relays suffer from coil resistance changes and armature lubricant stiffening in freezing weather. Our cold-rated latching relays use high-grade permanent magnets, specialized low-temperature synthetic lubricants, and temperature-compensated silver alloy contacts. They are factory certified for seamless pulse operation from -40°C up to +85°C.
Yes. Product families are manufactured to meet UL, cUL, CSA, CE, and RoHS standards. Engineering test documentation, UL file numbers, and material compliance certificates (REACH/RoHS) are provided alongside qualification sample packages for customer agency submittals.
The optimal pulse width depends on coil inductance and mechanical size, typically ranging between 15 milliseconds and 50 milliseconds. Applying a pulse longer than 100ms is unnecessary and wastes energy, while a pulse under 10ms may result in incomplete armature movement. Precise timing parameters are specified on every Altran component engineering sheet.
Our application engineering team regularly cross-references legacy part numbers from manufacturers such as Tyco/TE Connectivity, Omron, Panasonic, and Kilovac. Provide your electrical schematic, coil voltage, pin layout, and target load, and our team will recommend an EXACT fit-form-function replacement.
Standard qualification samples ship from our Sterling, Illinois warehouse within 24 to 48 hours, reaching Toronto, Montreal, Calgary, or Vancouver via express air within 2 business days. Production orders are managed via scheduled release programs or stocked via authorized North American distributors.
Talk directly with our North American application engineers. We evaluate your load curves, provide 3D CAD models, send evaluation samples, and issue competitive bulk pricing.
