As power electronics transition toward higher switching frequencies driven by Silicon Carbide (SiC) and Gallium Nitride (GaN) wide-bandgap (WBG) semiconductors, electromagnetic interference (EMI) mitigation has become a primary bottleneck in commercial product certification. A top-tier China EMC filter factory must combine advanced magnetic core physics, rigorous topology modeling, and high-frequency shielding design to guarantee full compliance with CISPR 32, CISPR 11, FCC Part 15, and IEC/EN 61000 emission standards.
Core Technical Insight: Modern EMI filters do not merely absorb noise; they create a severe impedance mismatch between the noise source and the utility power line. Common-mode (CM) currents are bypassed back to the metallic chassis via X/Y safety capacitors while differential-mode (DM) noise is choked through symmetrical inductive coils.
Electromagnetic interference propagates along power conductors in two distinct modes. Understanding the precise behavior of both modes is paramount when selecting or customizing an industrial EMI power line filter:
China's leading exporters utilize high-density automated toroidal winding lines to maintain symmetrical winding balance. An unbalance as small as 0.5% in common-mode chokes can cause unwanted CM-to-DM noise conversion, degrading total filter attenuation by up to 18 dB at critical harmonic frequencies (150kHz - 30MHz).
Building on world-class electromechanical engineering expertise—similar to industry-leading component builders like Altran Magnetics—our manufacturing ecosystem integrates raw magnetic material synthesis, precision stamping, vacuum epoxy encapsulation, and automated RF spectrum verification under unified quality management systems (ISO9001:2015 and IATF 16949).
Our engineering team delivers custom insertion loss curves and prototype samples within 48 to 72 hours, matching your unique PCB layout, mechanical housing footprint, and terminal constraints.
Every single manufactured production unit undergoes 100% Hi-Pot dielectric withstand testing, insulation resistance validation, and full insertion loss scanning across 150kHz - 30MHz band prior to release.
Complete traceability and component compliance. All filters utilize UL94V-0 flame-retardant potting compounds and carry international safety approvals including UL 1283, IEC/EN 60939, CE, and RoHS/REACH compliance documentation.
The global EMC/EMI filter market is undergoing rapid evolution driven by electrification, grid modernization, and aggressive power density targets. Enterprise procurement directors must anticipate key technology shifts to safeguard supply chain resilience and technical performance over the coming decade.
With the widespread adoption of 800V EV fast-charging platforms and megawatt-scale Battery Energy Storage Systems (BESS), demand is surging for specialized high-current DC EMI filters rated up to 1500VDC and 1000A. These filters require specialized ceramic capacitors and high-grade insulation barriers to eliminate high-voltage switching ripples without introducing thermal runoff.
Nanocrystalline alloys are rapidly replacing standard Manganese-Zinc (MnZn) ferrite materials in common-mode chokes. Nanocrystalline offers 2x to 3x higher saturation flux density ($B_s \approx 1.2\text{T}$) and exceptional permeability stability across extreme operating temperatures (-40°C to +125°C). This allows manufacturers to reduce filter physical dimensions by up to 40% while enhancing low-frequency noise attenuation.
To overcome space limitations in dense automotive and aerospace applications, hybrid EMC filters combining passive L-C elements with active noise-cancellation integrated circuits (ICs) are entering volume production. Active filters generate an opposite-phase current injection to cancel low-frequency noise, dramatically shrinking the required physical size of passive magnetic chokes.
Next-generation healthcare devices demand power entry filters with earth leakage currents controlled to strictly under 5 microamperes ($\mu\text{A}$) for patient-contact (BF/CF) equipment. Advanced low-leakage capacitor placement and stray capacitance shielding are now baseline requirements for China EMC filter exporters supplying global medical OEMs.
Use the following technical comparison matrix to match system voltage, current capacity, leakage boundaries, and filter topologies to your project requirements:
| Filter Series / Category | Rated Voltage | Current Range | Leakage Current | Attenuation Band | Typical Applications |
|---|---|---|---|---|---|

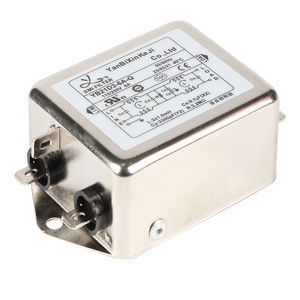

| Single-Phase General Purpose | 110V - 250VAC | 1A - 30A | < 0.8 mA | 150kHz - 30MHz | SMPS, Laboratory Instruments, Office Automation |

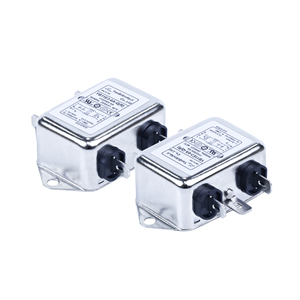

| Medical Grade (Low Leakage) | 115V / 250VAC | 1A - 20A | < 5 $\mu\text{A}$ - 75 $\mu\text{A}$ | 100kHz - 30MHz | Medical Imaging, Patient Monitors, Surgical Lasers |

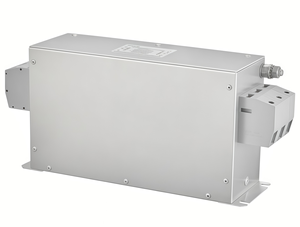

| Three-Phase 4-Wire Industrial | 380V - 480VAC | 10A - 2500A | < 3.5 mA - 12 mA | 10kHz - 30MHz | VFD Drives, CNC Machinery, Elevator Control |
| High-Voltage DC Line Filter | up to 1500 VDC | 10A - 600A | N/A (Galvanic DC) | 150kHz - 100MHz | Solar Inverters, BESS Cabinets, EV Fast Chargers |

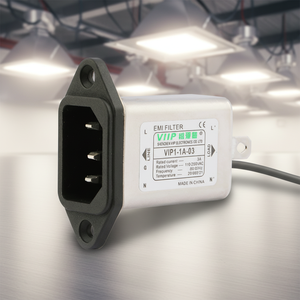

| IEC Socket Power Entry Module | 120V - 250VAC | 1A - 10A | < 0.5 mA | 150kHz - 30MHz | Rackmount Servers, Audio/Video Equipment, Desktop Gear |

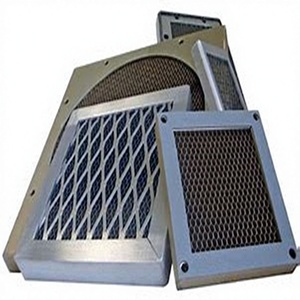

| RF Shielded Ventilation Panel | N/A (Pass-through Air) | N/A | N/A | 10MHz - 10GHz | EMC Test Chambers, MRI Rooms, Military Enclosures |
Direct, engineering-backed answers to essential procurement and technical queries encountered when sourcing EMC/EMI filters from China.
Single-stage filters provide cost-effective noise attenuation for equipment operating in low-to-medium noise environments with standard switching power supplies. Dual-stage (or multi-stage) filters incorporate two consecutive L-C filtering networks in series, offering superior attenuation (typically 20dB to 40dB higher performance) required for severe electrical interference environments such as variable frequency drives (VFDs) and high-power inverter units.

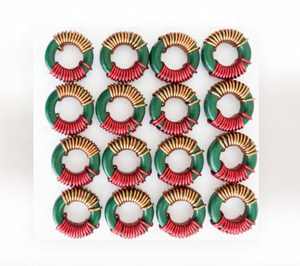

Common-mode chokes are wound symmetrically so that equal and opposite operating load currents create opposing magnetic fluxes within the toroidal core, resulting in near-zero net functional flux. Saturation only occurs if severe line unbalance, high DC bias, or extreme differential-mode surge currents occur. We utilize high saturation flux density ($B_s$) nanocrystalline and iron-powder cores paired with controlled stray inductance tuning to prevent premature core saturation under peak load conditions.
In medical environments governed by IEC/EN 60601-1, leakage currents flowing through protective earth conductors present severe electric shock risks to patients and medical staff. Standard filters use Y-capacitors tied directly to ground, creating AC leakage current. Medical-grade filters minimize or completely eliminate Y-capacitors (non-housing grounding versions), constraining leakage current to ultra-low microampere levels while relying on optimized magnetic choke inductance to maintain high EMI attenuation.
Yes. Custom engineering and exact drop-in component cross-referencing represent core capabilities of our manufacturing facilities. By reviewing your original manufacturer datasheet, insertion loss curve (dB vs. frequency), mounting dimensions, and terminal wiring, our technical team produces functionally equivalent or superior custom filter assemblies under full revision control and documented safety compliance.
Every shipment is accompanied by complete regulatory and batch quality documentation. This includes Certificate of Conformance (RoHS / REACH), 100% Factory Test Reports (Hi-Pot isolation, insulation resistance, DC resistance), UL file reference numbers, and full HS code export customs declarations.
