Why modern OEM purchasing managers must re-evaluate electromechanical component selection in the era of smart grids, EV architectures, and automated manufacturing.
In modern electrical systems, the micro relay remains an indispensable building block for signal isolation, high-current switching, and system protection. Defined as subminiature electromechanical relays with standardized footprints (such as ISO micro, PCB subminiature T73/T78 configurations, and modular DIN-rail enclosures), these devices bridge low-power digital control signals (microcontrollers, PLCs, ECUs) with high-power AC and DC loads.
Driven by rapid electrification in automotive architectures (12V/24V auxiliary power distribution networks), smart home HVAC automation, industrial robotics, and renewable battery energy storage systems (BESS), global demand for high-reliability micro relays has surged. Procurement teams facing strict BOM budgets must balance unit costs against critical performance parameters: contact bounce duration, dielectric strength, temperature degradation coefficients, and contact material degradation under inductive load conditions.
While Solid-State Relays offer semiconductor switching speed, electromechanical micro relays provide physical air-gap isolation, near-zero conductive state voltage drop (<50mΩ contact resistance), and immune protection against electromagnetic interference (EMI) voltage spikes—making them superior for automotive engine bays and high-surge motor startup circuits.
An objective, technical evaluation of global micro relay manufacturers based on factory automation levels, material purity, quality certifications, and engineering support.
| Manufacturer | HQ / Manufacturing | Key Strengths | Typical Contact Alloys | Certifications | Target Segment |
|---|---|---|---|---|---|
| Altran Magnetics | Sterling, IL, USA / Global Direct | Custom engineering, low MOQ sampling, rapid revision control, high dielectric models | AgSnO2, AgNi, Gold-Plated Alloys | UL, cUL, CE, RoHS, REACH | EV / BESS / OEM |
| Omron Electronics | Japan / Multi-national | Ultra-miniaturization, low coil consumption, robotic assembly lines | Ag-Alloy + Au Clad | UL, CSA, VDE, TUV | Automotive / Medical |
| Panasonic Industry | Japan / China / Europe | High surge withstand, sealed RT III construction, automotive qualified | AgSnO2 90/10 | IATF 16949, UL, ISO 9001 | Automotive ECUs / Solar |
| TE Connectivity | Switzerland / Global | Massive global distribution, plug-in automotive relay standards | AgNi 90/10, AgSnO2 | IATF 16949, UL508 | Commercial Vehicle / Aerospace |
| Fujitsu Components | Japan | Quiet switching technology, low profile PCB micro relay variants | Silver Nickel / Gold Flash | UL, CSA, VDE | HVAC / Telecom |
| Hongfa Technology | China | World's largest volume output, competitive unit cost structure | AgSnO2, AgCdO (Legacy) | UL, VDE, CQC, IATF | Appliance / Smart Metering |
| Song Chuan Precision | Taiwan / China | Specialized automotive relays, heavy current PCB track mounting | AgSnO2 In2O3 | ISO 14001, IATF 16949 | Automotive / Power Supply |
| Finder Relays | Italy | European industrial control relays, DIN-rail miniature modules | AgNi, AgSnO2 | CE, UL, EAC, RINA | Building Automation |

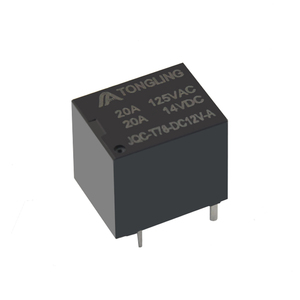

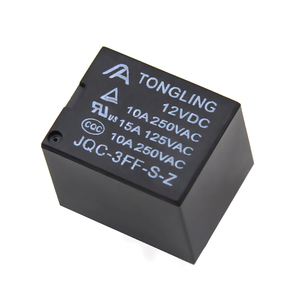

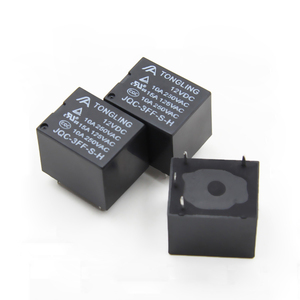

| Tongling / OEM Partners | China | Standardized T73/T78/3FF footprint replacements at factory scale | AgSnO2, Silver Alloy | UL, CQC, CE | White Goods / Aftermarket |
| Picker Components | USA / Asia OEM | Heavy-duty switching options up to 45A in micro footprints | AgSnO2 | UL, CSA | Industrial Equipment |
Four critical physical and electrical parameters every component engineer must review prior to finalizing bill of materials (BOM).
Traditional AgCdO (Silver Cadmium Oxide) contacts are banned under RoHS rules. Premium factories use AgSnO2 (Silver Tin Oxide) or AgNi (Silver Nickel). AgSnO2 offers exceptional arc-erosion resistance under high peak inrush currents (lamp loads, capacitive power supplies, motor start circuits up to 40A), preventing contact welding.

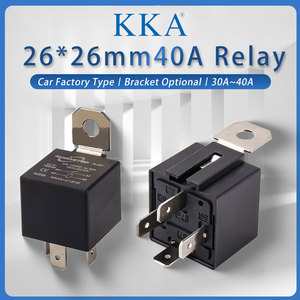

Micro relays are rated according to IEC 61810-7: RT I (Dust Protected), RT II (Flux Proof), and RT III (Wash Tight / Fully Sealed IP67). Automotive engine bays, marine environments, and wave-soldered PCB assemblies demand RT III sealed relays to prevent chemical ingress and atmospheric oxidation.
Standard micro relay coils consume 360mW to 800mW. Highly integrated enclosures generate significant thermal build-up. Modern designs utilize low-power sensitive coils (down to 200mW) or external PWM coil economizers to limit internal heat generation and prevent insulation breakdown at +125°C ambient operational temperatures.
Anticipating supply chain changes, material shifts, and technological disruptions in electromechanical components.
As automotive architectures transition to 48V mild hybrid and 400V/800V EV platforms, auxiliary micro relays are evolving to handle higher DC voltages without sustaining destructive DC arcs. Specialized internal magnetic blowouts and wider contact air gaps are becoming standard specification items in automotive micro relay manufacturing.
Circuit board real estate is at a premium. Micro relay factories are shrinking case footprints by up to 30% while retaining 20A-30A switching capabilities. Double micro relays (twin relays in a single enclosure) are gaining rapid traction in automotive window power modules and seat adjustment control units.
Global OEMs are moving away from single-source reliance on overseas commodity suppliers. Buyers prioritize manufacturers like Altran Magnetics that offer direct technical support, clear material compliance documentation (RoHS, REACH, Conflict Minerals), traceable batch coding, and guaranteed revision control.
Direct answers to technical and purchasing questions asked by electrical design engineers and OEM buyers.

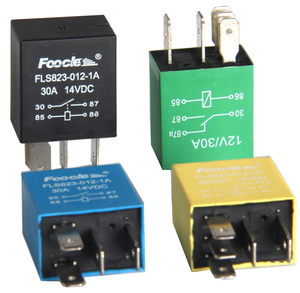

A 4-Pin relay typically features a Single Pole Single Throw (SPST - Normally Open) configuration: two pins for the coil circuit and two pins for the power switch circuit. A 5-Pin relay represents a Single Pole Double Throw (SPDT) configuration, adding a fifth terminal for Normally Closed (NC) contact. SPDT micro relays allow toggling between two separate output circuits.
Inductive loads (motors, solenoids, actuators) produce massive inrush currents during turn-on and back-EMF voltage spikes during turn-off. To prevent welding, select micro relays manufactured with AgSnO2 (Silver Tin Oxide) contact materials, ensure adequate contact force, and install external suppression diodes or RC snubbers across the load or coil.
Yes, provided pin spacing (terminal pitch), contact form, coil voltage/power rating, and physical enclosure dimensions match standard footprints (e.g., T73, T78, ISO Micro). However, engineers must verify coil resistance tolerances, pick-up voltage thresholds, and dielectric strength ratings before approval. Altran Magnetics provides comprehensive cross-reference validation for global part numbers.
Automotive micro relays require production under IATF 16949 certified quality systems, full compliance with ISO 7637-2 (electrical transient immunity), and compliance with ambient operating temperature specs (-40°C to +125°C). UL/cUL recognition under UL 508 is mandatory for industrial and appliance applications.
Combining U.S. engineering oversight with high-volume precision manufacturing.
We do not just ship catalog parts. Our Sterling, Illinois engineering team reviews your schematics, load curves, ambient temperatures, and enclosure restrictions before part numbers are quoted, ensuring zero field failures.
Every production batch undergoes 100% testing for pick-up/drop-out voltage, contact resistance, coil resistance, and dielectric withstand. Production lots are completely traceable for auditing peace of mind.
We maintain buffer inventory, offer scheduled release programs, deliver complete export compliance documentation, and support private-label drawings locked under strict engineering change notifications (ECN).
Need custom coil voltages, silver tin oxide contacts, IP67 sealed cases, or fast sample validation for your project? Talk directly with our engineering team today.
