An in-depth guide to control relay switching physics, contact metallurgy, hermetic sealing, and OEM integration parameters.
Control relays serve as the critical electromechanical or electronic nexus between low-power control circuitry (such as microcontrollers, PLCs, or building management systems) and high-power operational loads. When designing custom OEM/ODM relays, electrical contact dynamics under inductive and capacitive load conditions represent the single greatest determinant of operational longevity.
During contact opening under inductive loads (e.g., electric motor windings, solenoid coils, or transformer primaries), back-EMF ($V = -L \frac{di}{dt}$) induces severe voltage spikes that ionize the air gap between contacts. This ion stream forms an arc discharge reaching temperatures above 5,000 K, which causes metal transfer, material erosion, contact welding, and high contact resistance over time.
Selecting between Electromechanical Relays (EMR) and Solid-State Relays (SSR) requires balancing switching frequency, thermal dissipation, electrical isolation, and BOM cost constraints:
| Engineering Attribute | Electromechanical Relays (EMR) | Solid-State Relays (SSR) | Hybrid Control Modules |
|---|---|---|---|
| Switching Speed | 5 ms to 25 ms (Mechanical inertia limit) | Microseconds ($\le 100\,\mu\text{s}$) | Controlled sequence (Zero-cross optimized) |
| Electrical Life (Ops) | $100,000$ to $500,000$ cycles at rated load | Infinite (>50 million cycles theoretical) | >5 million cycles combined |
| Galvanic Isolation | Complete physical air gap (>2,500V to 4,000V) | Optocoupled isolation (typically 2,500V to 3,750V) | Dual-stage isolated structure |
| Thermal Dissipation | Negligible heat generation ($I^2R$ low) | Requires dedicated heatsinking ($1\text{W}/\text{A}$ loss) | Low-heat hybrid thermal management |
| Vibration Immunity | Moderate (Contact chatter at high G-forces) | High (Solid epoxy potting, no moving parts) | Encapsulated defense-grade shock resistance |
In high-voltage direct current (HVDC) switching applications—such as Electric Vehicle (EV) fast-charging cabinets, Battery Energy Storage Systems (BESS), and solar inverter disconnects—direct current does not cross zero naturally like alternating current (AC). Consequently, DC arcs do not self-extinguish easily.

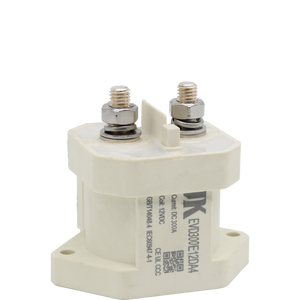

Our custom OEM DC contactor modules incorporate hermetically sealed ceramic or high-temperature epoxy chambers backfilled with pressurized inert gas mixtures (typically Nitrogen and Hydrogen). Hydrogen’s exceptional thermal conductivity rapidly cools and quenches the arc plasma stream within milliseconds, preventing sustained arc damage and permitting continuous switching operations up to 1,500 VDC.
Combining U.S.-based application engineering support with automated, scalable manufacturing lines to streamline your product lifecycle.
Modify coil voltages (3VDC to 277VAC), pin dimensions, mounting brackets, latching mechanisms, and wire harness integration. Custom part numbers are issued under strict revision control to safeguard your BOM.
Every design passes thorough validation: dielectric withstand, insulation resistance, contact resistance (<1mΩ initial), contact bounce time, and temperature rise testing under maximum load continuous duty cycles.
Pre-certified relay structures compliant with UL 508, UL 60947-4-1, CSA C22.2, IEC/EN 60947-5-1, CE, and RoHS 3.0 / REACH requirements, accelerating your system-level regulatory approvals.
Integrated economizer circuits and PWM pulse-hold coil control reduce steady-state power consumption by up to 70%, decreasing internal cabinet ambient heating and enhancing overall system efficiency.
Lot-coded laser marking ties every individual control relay directly to raw material batch records, automated optical inspection logs, and final end-of-line electrical test measurements.
Strategic buffer inventory, flexible release schedules, VMI (Vendor Managed Inventory) solutions, and direct factory technical support eliminate lead-time bottlenecks for critical product builds.
From initial schematic review to final volume delivery, Altran Magnetics' cross-functional engineering teams collaborate closely with your R&D staff to prevent costly design revisions down the road.
Electrical load profile, thermal environment, mounting envelope, and switching frequency specs defined.
3D printable housings, prototype magnetic coils, and sample builds provided within expedited timelines.
Automated endurance testing under extreme voltage fluctuation, thermal shock, and vibration profiles.
Mass production with 100% end-of-line electrical verification, lot tracking, and compliant packaging.
Insights for engineering executives and procurement directors preparing next-generation power control platforms.
Silicon Carbide (SiC) and Gallium Nitride (GaN) semiconductors are revolutionizing Solid-State Relays. By delivering lower $R_{DS(on)}$ conduction losses and surviving junction temperatures exceeding $175^\circ\text{C}$, WBG-based relays allow thermal heatsinks to shrink by up to 50%, enabling ultra-compact industrial equipment designs.
Modern industrial control architectures demand continuous condition monitoring. OEM relays are increasingly embedded with micro-sensors that measure real-time contact resistance, coil temperature, cycle counts, and voltage transients—transmitting telemetry over MODBUS or CANbus to alert operators before failure occurs.
With commercial Megawatt Charging Systems (MCS) for heavy-duty electric transport and utility-scale energy storage migrating to 1,500 VDC bus lines, legacy 800V contactors are being replaced by gas-filled, bi-directional, high-current DC relays capable of interrupting fault currents up to 3,000A without explosion risks.
Expert answers to critical design, electrical compliance, and custom ordering queries.
Material selection depends heavily on load characteristics. Silver Tin Oxide ($\text{AgSnO}_2$) is recommended for high-inrush capacitive loads, lamps, and inductive electric motor switching due to its high melting point and resistance to material transfer. Silver Nickel ($\text{AgNi}$) offers lower contact resistance and superior conductivity for clean, resistive AC switching up to 16A. While Silver Cadmium Oxide ($\text{AgCdO}$) was historically common, RoHS 3.0 regulations restrict its use in modern European and North American markets; we supply fully compliant $\text{AgSnO}_2$ drop-in replacements that meet or exceed legacy performance.
Altran Magnetics control relays are engineered to comply with IEC 60664-1 and UL 508 insulation coordination standards. For industrial 480VAC and 1,000VDC applications, our PCB and panel-mount control relays maintain clearance distances $\ge 8\,\text{mm}$ and creepage distances $\ge 10\,\text{mm}$ between control coils and high-power contact terminals, ensuring impulse withstand capabilities exceeding 4,000V RMS.
We offer end-to-end custom production services. This includes custom laser-engraved housing part numbers, corporate logos, custom shell colors, custom terminal pin lengths, pre-attached fly-leads with TE/Molex/JST connectors, and customer-specific packaging. All custom configurations are assigned dedicated drawing part numbers to ensure zero unannounced engineering revisions.
Standard modification samples (e.g., custom coil winding or specific terminal bend angles) are typically delivered in 2 to 3 weeks. Complete ground-up custom tooling projects (new housing geometry or custom contact assemblies) take approximately 6 to 8 weeks for pilot sample qualification. Mass production runs average 4 to 6 weeks, supported by continuous buffer stock programs for qualified production accounts.
